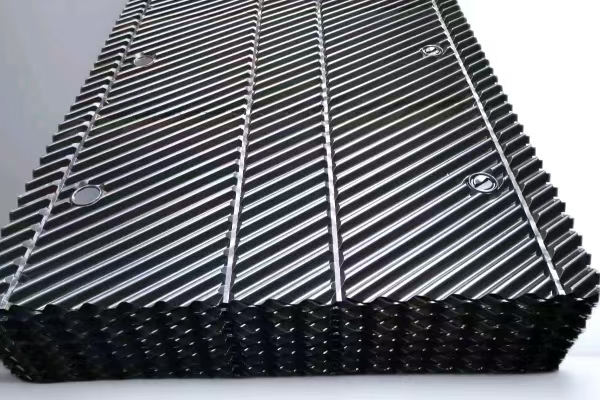

1830mm Width Cooling Tower Fill with 20mm Pitch

The 1830mm Width Cooling Tower Fill features a 20 mm pitch and 90° angle configuration for cooling tower applications requiring a wide fill format. Its dimensional and structural parameters can be specified according to the requirements of different cooling tower installations.

Product Specifications

• Width: 1830 mm
• Length: 1220 mm
• Thickness: Customizable
• Pitch: 20 mm
• Angle: 90°
• Material: PVC, CPVC, PP

20mm Pitch and 90° Angle

The 20 mm pitch defines the spacing between the fill's formed passages, while the 90° angle represents its specified structural configuration. These parameters should be considered together with water loading, airflow conditions, and the tower's internal arrangement when selecting cooling tower fill.

Wide 1830mm Fill Configuration

With a width of 1830 mm and a length of 1220 mm, this fill provides a large-format configuration for suitable cooling tower layouts. The wide dimension can be particularly useful when the available fill section is designed around larger panel sizes.

Material and Thickness Options

The fill is available in PVC, CPVC, and PP. Thickness can also be customized, allowing the fill specification to be adjusted for different operating conditions and project requirements.

Confirm the Fill Geometry Before Selection

When replacing or specifying cooling tower fill, dimensions alone are not enough. Width, length, pitch, angle, thickness, and material should be confirmed together with the existing fill arrangement and tower operating conditions. This helps ensure that the selected geometry is compatible with the intended installation.

The 1830mm Width Cooling Tower Fill combines a wide-format configuration with a 20 mm pitch, 90° angle, customizable thickness, and multiple material options for different cooling tower applications.
